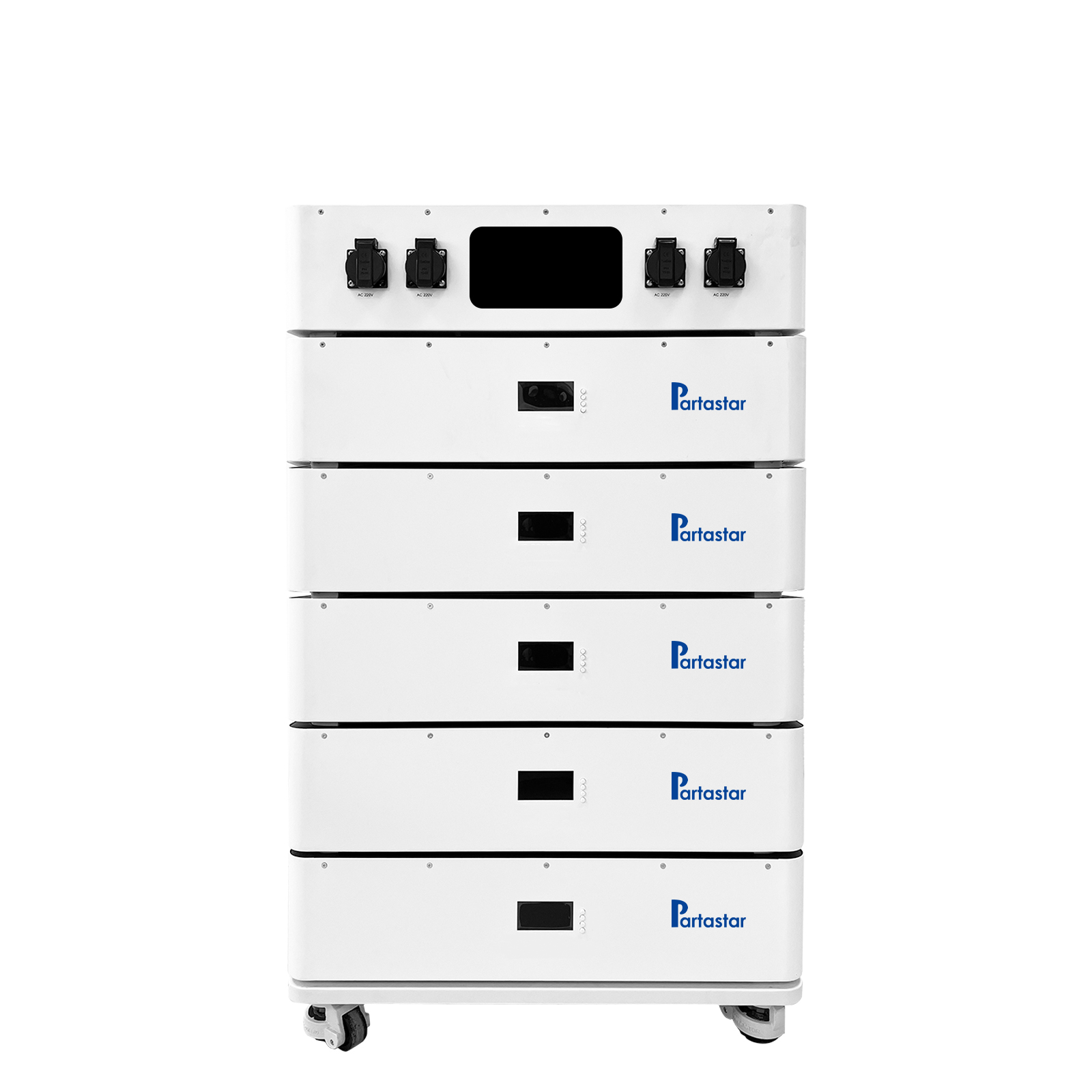

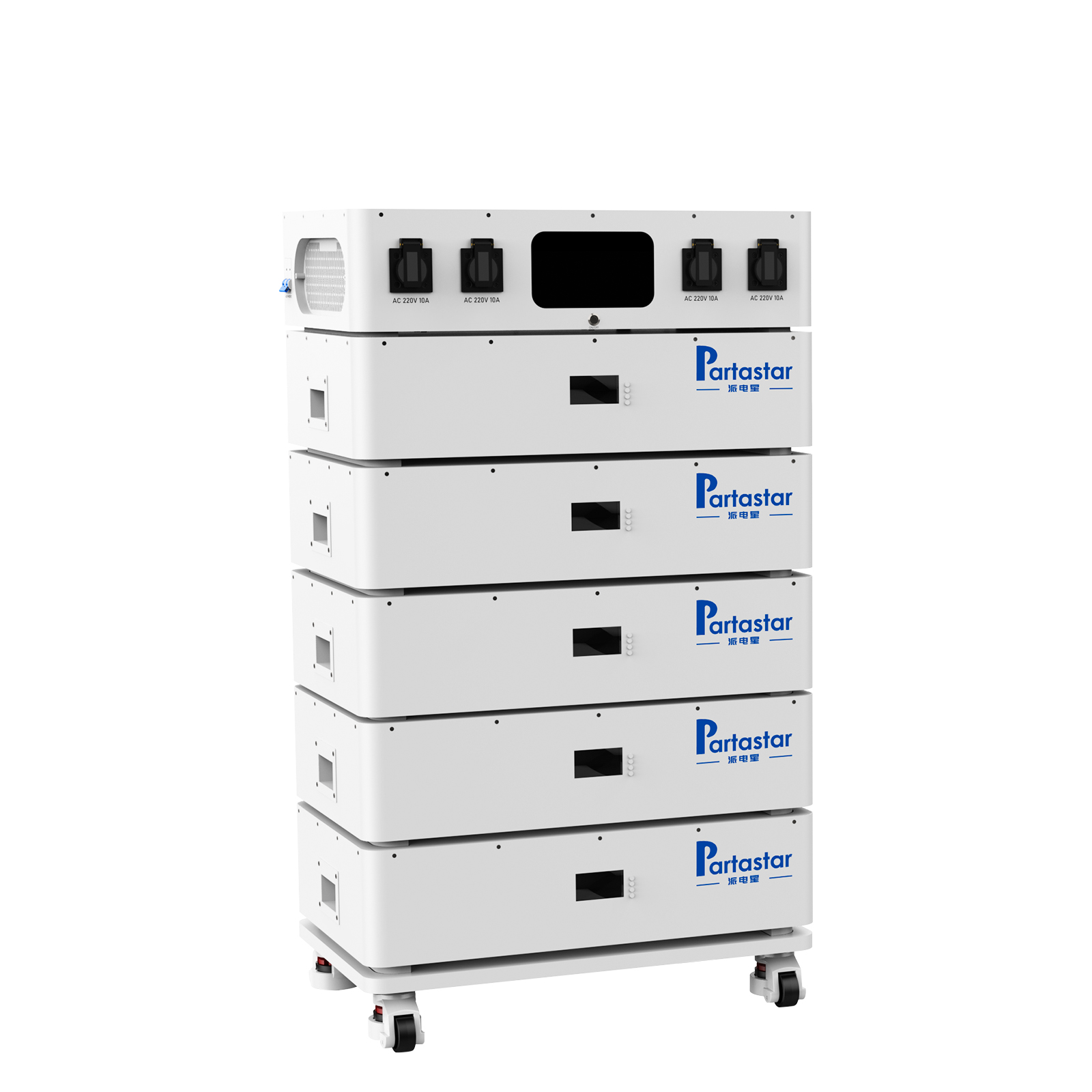

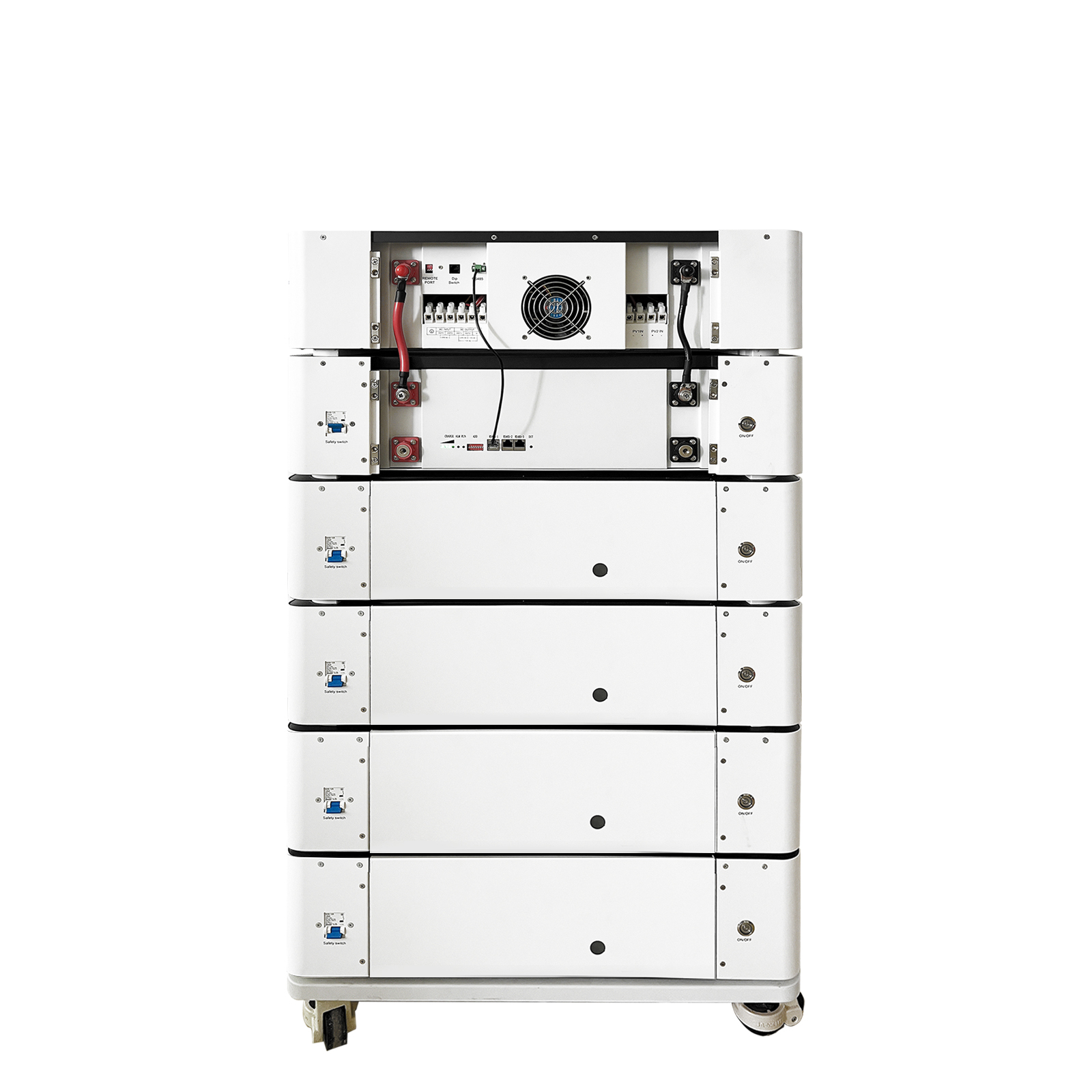

Stacked battery pack
30kwh Battery+Inverter
Inverter parameters:
Rated Voltage：220/110VAC
Maximum Inverter Efficiency：88%
Rated Power：6000W
Peak Power：18000VA
Out Current: 27A (max)
Inverter Output：220/110VAC
Output Frequency：50/60Hz±0.1%
Output waveform: pure sine wave
Product Parameters
| Technical Specification | |
|---|---|
| Nominal voltage | 51.2V |
| Rated capacity | 184Ah |
| Energy | 30KWH |
| Standard charging voltage | 58.4V |
| Discharge cut-off voltage | 40V |
| Standard charging current | 50A |
| Maximum charging current | 100A |
| Maximum constant discharge current | 100A |
| Peak discharge current | 120A (30s) |
| MPPT controller | 60A |
| Single product size | 690 * 433 * 170mm |
| Weight | 492.5 pounds |
| Cycle life of | 6000+times |
| Charging temperature | 0~60 ° C |
| Discharge temperature | -20~60 ° C |
| Storage temperature | 10-45 ° C |
