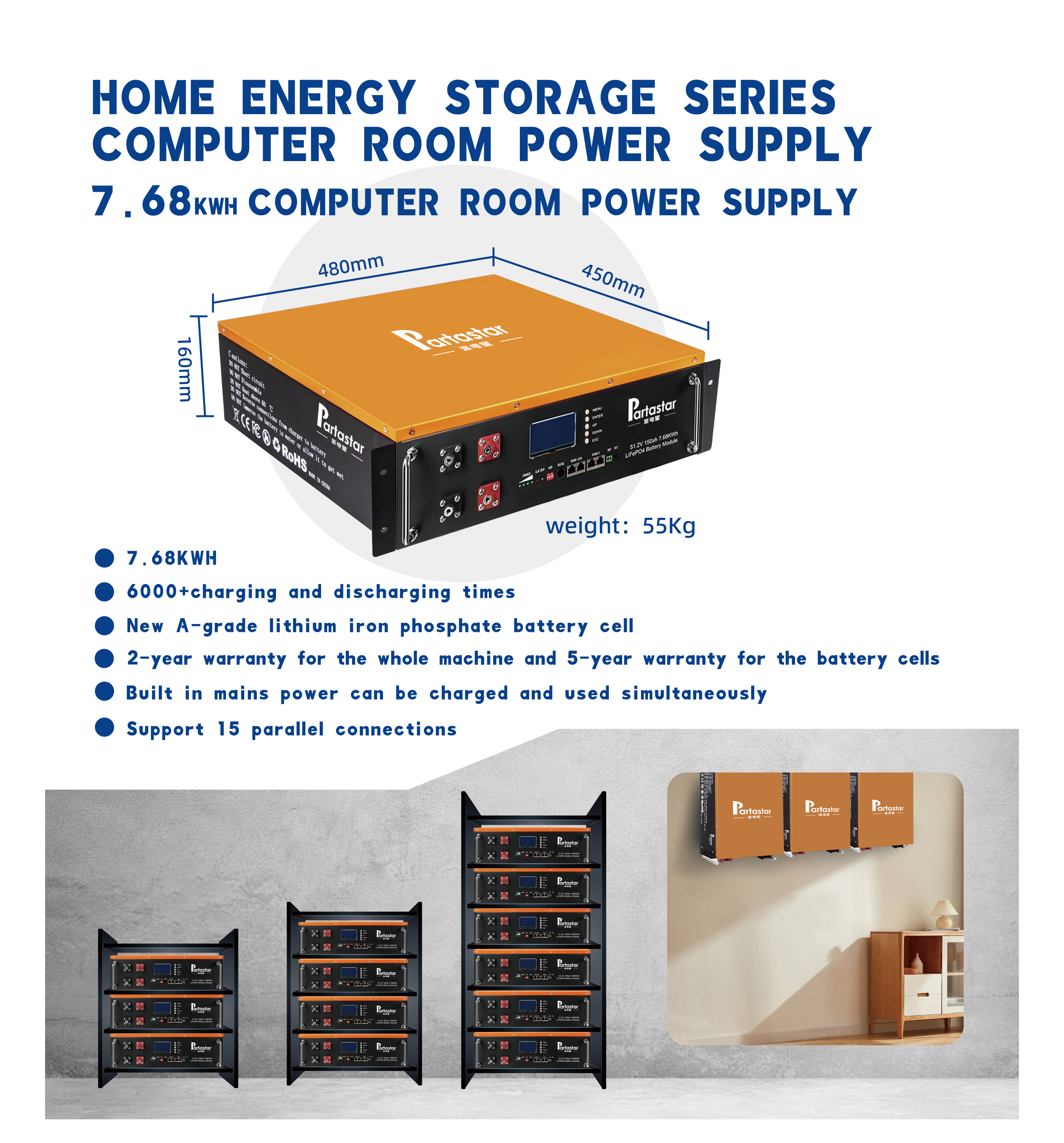

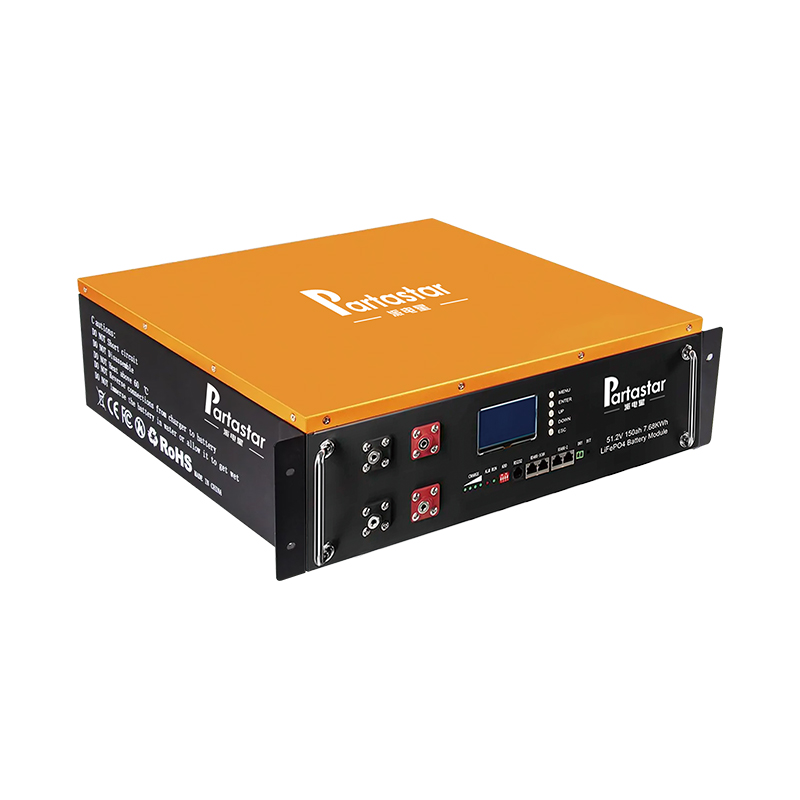

Cabinet battery pack
7.68KWH Computer room power supply
○ 6000+charging and discharging times
○ New A-grade lithium iron phosphate battery cell
○ 2-year warranty for the whole machine and 5-year warranty for the battery cells
○ Support 15 parallel connections
○ Built in mains power can be charged and used simultaneously
Product Parameters
| Technical Specification | |
|---|---|
| Product specifications: |
7.68 KWH |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 150Ah |
| Rated power: | 7680W |
| Standard charging voltage: | 58.4V |
| Discharge cut-off voltage: | 40V |
| Standard charging current: | 50A |
| Maximum charging current: | 100A |
| Maximum constant discharge current: |
100A |
| Peak discharge current: | 120A @30s |
| Size: | 480*450*160mm |
| Weight: | 55kg |
| Cycle life: | 6000+ |
| Charging temperature: | 0~60 °C |
| Emission temperature: | -20~ 60°C |
| Storage temperature: | 10~ 45°C |
