1. Product Overview

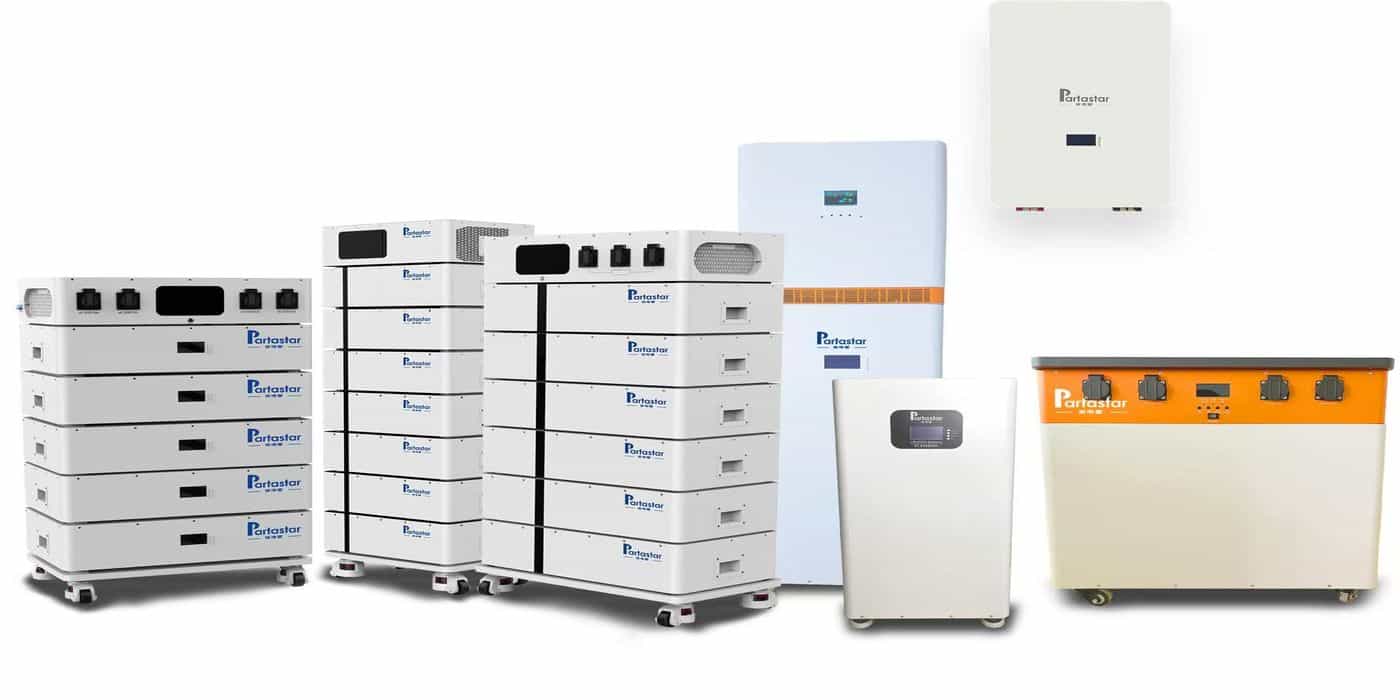

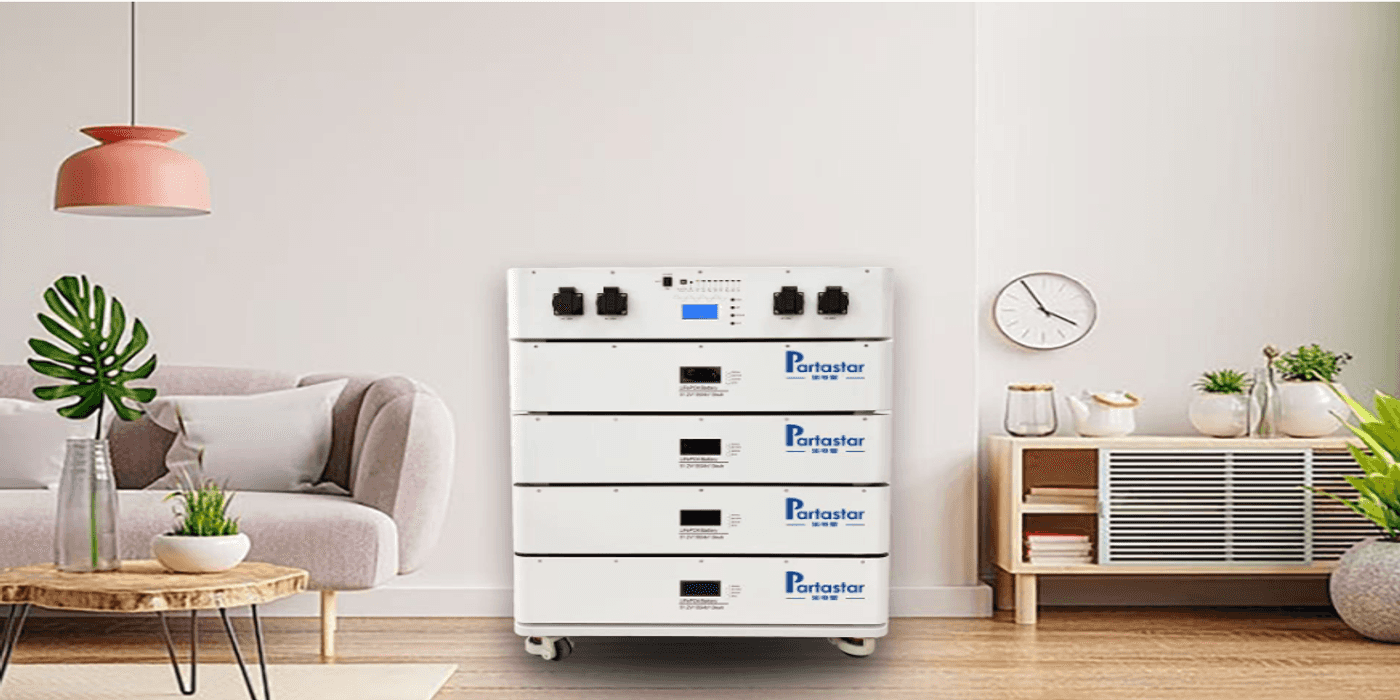

The 10kWh Home Energy Storage System is a cutting-edge, modular Smart Storage Solutions designed to address the growing demand for flexible, efficient, and scalable Plug and Play Home Storage across residential, commercial, and industrial applications. With a core energy capacity of 10kWh per unit, this system features a unique stackable design that allows users to easily expand storage capacity by adding additional units—supporting seamless scaling from 10kWh up to hundreds of kWh, depending on specific energy needs.
Crafted with high-performance lithium-ion battery cells (with options for LFP chemistry to prioritize safety and long cycle life), the system delivers stable output, excellent thermal management, and a lifespan of over 6,000 charge-discharge cycles (at 80% depth of discharge), ensuring reliable operation for more than 15 years. It is also compatible with both on-grid and off-grid setups, making it a versatile choice for diverse energy scenarios.
2. Key Technical Features

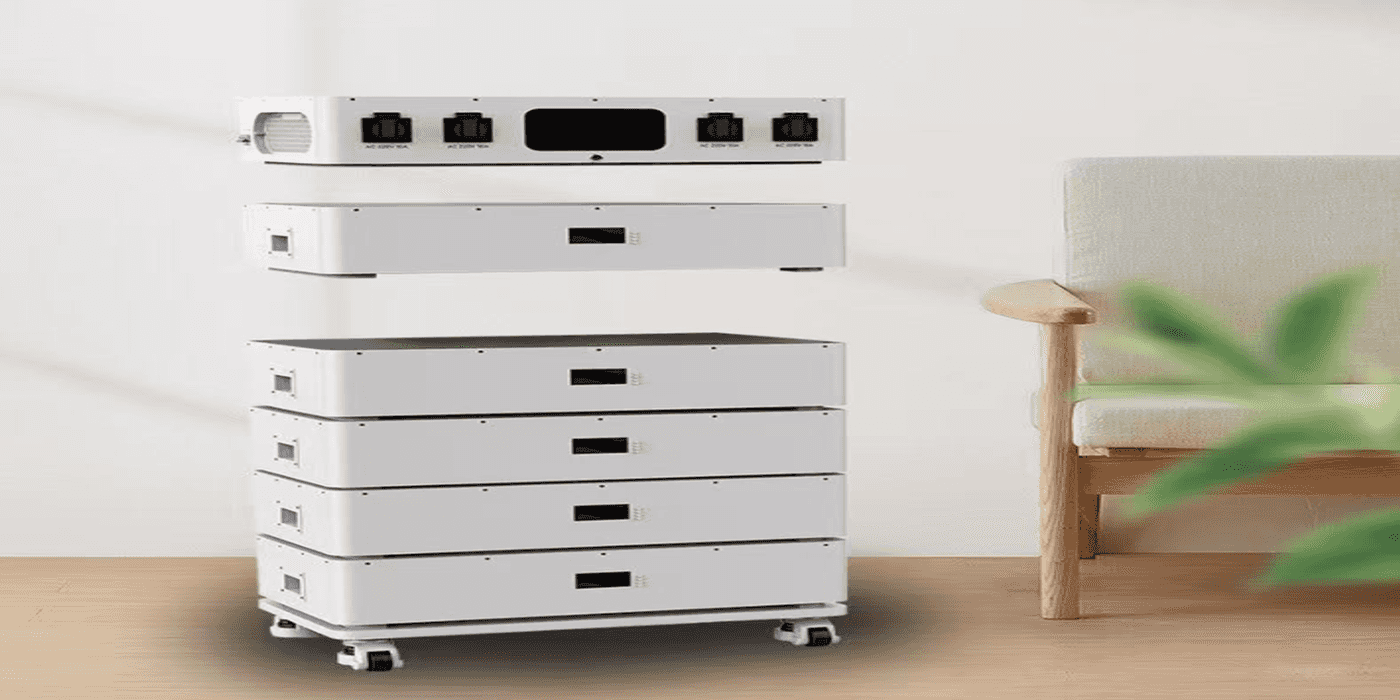

Modular Stackability: Each 10kWh unit is engineered with standardized connection interfaces (both electrical and communication), enabling tool-free stacking and parallel/series configuration. This eliminates the need for complex reengineering when expanding capacity, reducing installation time by up to 40% compared to non-stackable systems.
High Energy Efficiency: Equipped with a built-in bidirectional inverter (efficiency up to 96.5%) and advanced battery management system (BMS), the system minimizes energy loss during charging and discharging. It also supports smart load shifting—optimizing energy usage by storing electricity during off-peak hours (low tariff) and supplying power during peak hours (high tariff) to cut energy costs.
Enhanced Safety: The LFP battery cells offer intrinsic resistance to thermal runaway, while the system’s multi-layer protection mechanisms (overcharge, over-discharge, short-circuit, and temperature protection) ensure safe operation even in extreme environments (operating temperature range: -20°C to 50°C). Additionally, a fire-retardant casing and IP65-rated enclosure make it suitable for both indoor and outdoor installation.
Smart Connectivity: Integrated with Wi-Fi/Bluetooth and compatible with third-party energy management platforms (e.g., SolarEdge, Enphase), the system allows real-time monitoring of battery status (SOC, voltage, temperature), remote control of charging/discharging schedules, and data analysis for optimizing energy efficiency.
3. Target Applications
Residential Solar Backup: Works with rooftop solar systems to store excess solar energy during the day, providing backup power during grid outages and reducing reliance on grid electricity—lowering monthly energy bills by 30-50% for typical households.
Commercial Peak Shaving: For small-to-medium businesses (e.g., restaurants, offices), the system helps reduce peak demand charges by discharging stored energy during high-consumption periods (e.g., morning/evening peaks), resulting in significant cost savings on utility bills.
Off-Grid Energy Supply: Ideal for remote locations (e.g., cabins, rural communities) without access to the grid, the system pairs with solar/wind generators to provide a stable, continuous energy supply—replacing noisy, high-maintenance diesel generators.
Microgrid Support: Integrates into microgrids for communities, campuses, or industrial parks to enhance grid stability, balance energy supply/demand, and support the integration of renewable energy sources (reducing carbon emissions by up to 80% compared to fossil fuel-based microgrids).
4. Competitive Advantages
Cost-Effective Scalability: Unlike fixed-capacity energy storage systems, the stackable design allows users to start with a 10kWh unit and expand incrementally—avoiding upfront investment in unused capacity.
Easy Installation & Maintenance: The lightweight, compact design (each unit weighs ~120kg, dimensions: 600x800x250mm) and plug-and-play connections simplify installation, while the BMS enables predictive maintenance (alerting users to potential issues before they cause downtime).
Eco-Friendly Design: Made with recyclable materials and LFP batteries (free of cobalt, a toxic and scarce resource), the system aligns with global sustainability goals and complies with international environmental standards (e.g., CE, UL, RoHS).
5. Implementation Plan
Needs Assessment: Collaborate with clients to analyze energy consumption patterns, peak demand, and scalability requirements to determine the number of 10kWh units needed.
Custom Configuration: Configure the system (parallel/series connection, inverter compatibility, smart scheduling) to match specific application needs (e.g., backup power, peak shaving).
Installation & Testing: Provide on-site installation by certified technicians, followed by rigorous testing (load capacity, safety protocols, connectivity) to ensure optimal performance.
